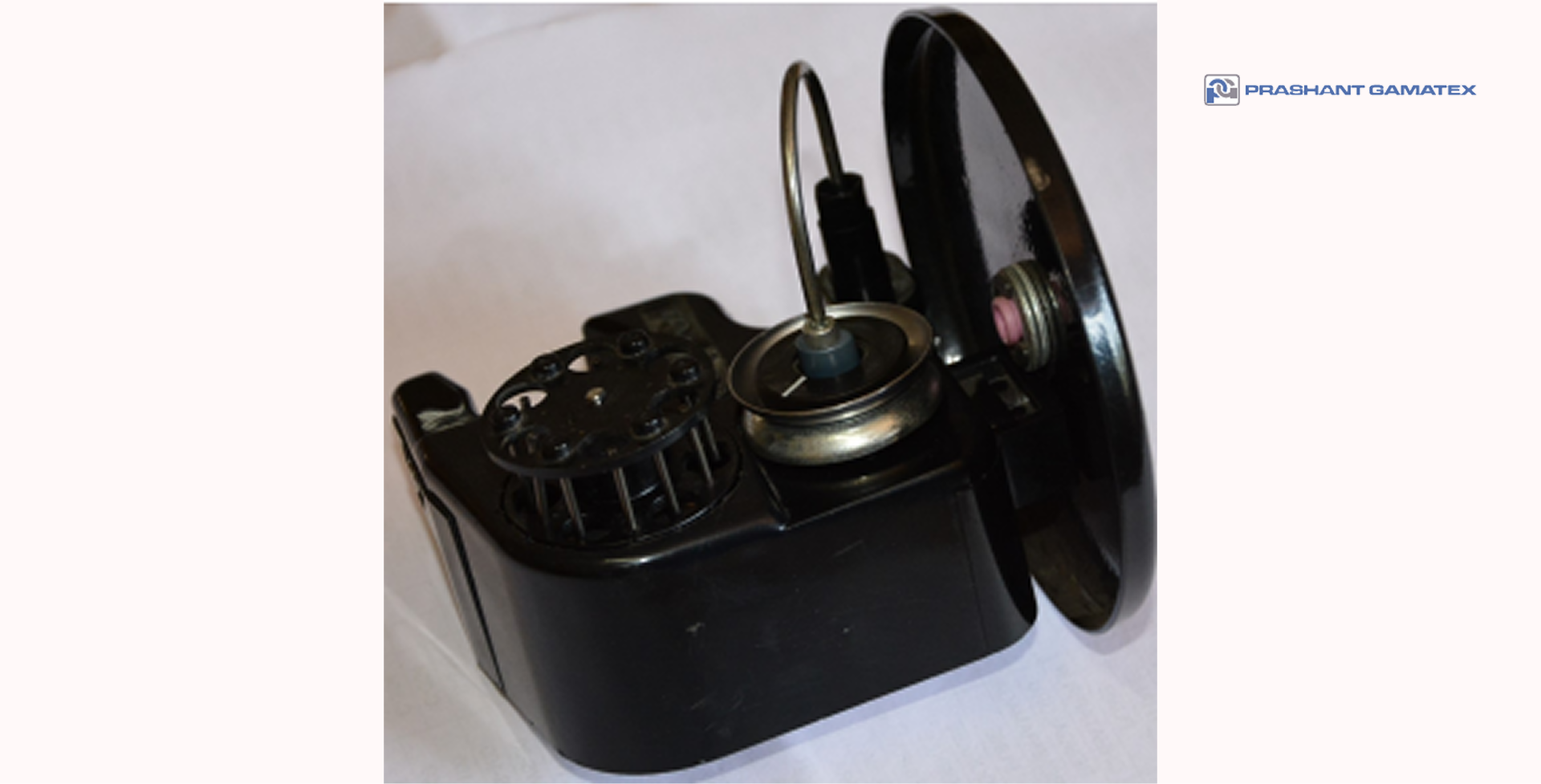

The MLTD is Electro magnetic tension control device designed especially for warping lightweight glass fiber having highly precision tension controls.
Features:
- Strudy and modular construction supports.
- State of art Tensioner having 5-35 grams capacity with +/- 2 gram accuracy, settable in 1 gram increments.
- Each unit is calibrated via internal microcontroller.
- Zone wise yarn tension setting.
- Uniform tension from 1st post to the last post.
- Yarn speed upto 1,000 mtr/min maximum.
- Yarn exit angle 900 - 1000
- Ceramic Eyelet for Yarn Inlet Guide
- Operator touch screen menu driven programming.
- Unique design of pulley eliminates Yarn overlap. Minimum contact on pulley prevents filament breakage.
- Yarn Breakage stop motion using optical sensor with individual identification of yarn break number.
- Micro controller unit communicates between each tension control units which enables simultaneous remote tension setting & uniform tension in each post.
Specifications:
Tension Setting Range : 5-35 grams,Setable in 1 gram increments
Accuracy : +/- 2 gram
Yarn Speed : 1000 mtr/min max
Pre-Tension Device : Weight type disk tensioner
Stop motion : Braking system incorporated
Yarn Exit Angle : 900-1000
Yarn Inlet guide : Ceramic Eyelet
Yarn Inlet Bobbin Size :
Available feature : Stop Motion for Yarn Break with
identification No.
