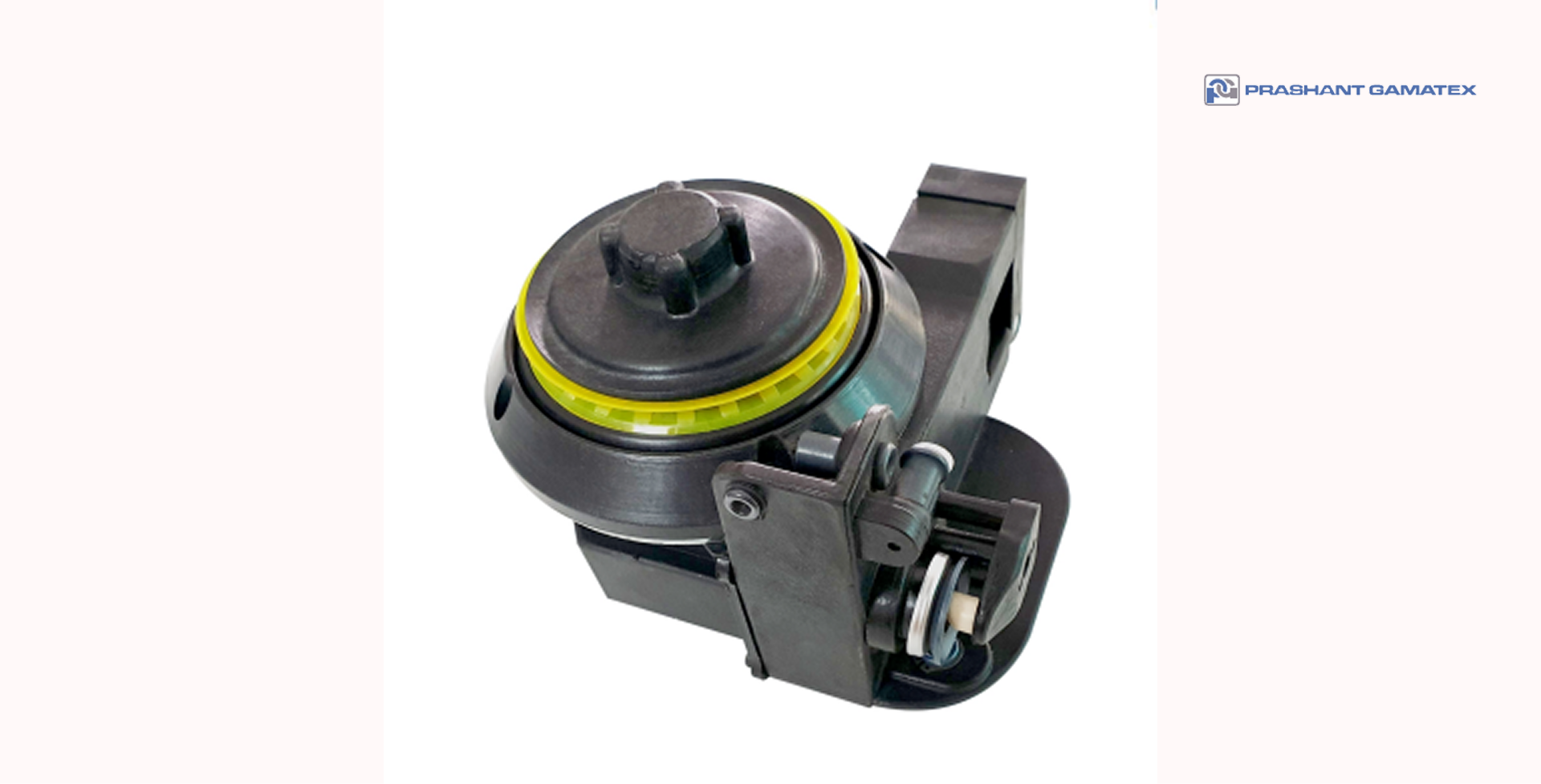

The MHTD is Electro magnetic tension control device designed especially for warping of High-Strength Technical yarns ex. Aramid ,glass which must be wrap with high Tension level, Gentle handling and with top quality.
Features:
- Strudy and modular construction supports.
- State of art Tensioner having 30-150 grams capacity , settable in 1 gram increments.
- Each unit is calibrated via internal microcontroller.
- Zone wise yarn tension setting.
- Uniform tension from 1st post to the last post.
- Yarn speed upto 1,000 mtr/min maximum depending on yarn.
- Accu-Gripper Wheel for prefect yarn grip
- Eyelet for Yarn Inlet Guide for frictionless yarn travel
- Operator touch screen menu driven programming
- Yarn Breakage stop motion using optical sensor with individual identification of yarn break number.
- Micro controller unit communicates between each tension control units which enables simultaneous remote tension setting & uniform tension in each post.
Specifications:
Tension Setting Range : 30-150 grams,Setable in 1 gram increments
Yarn Speed : 1000 mtr/min max
Stop motion : Braking system incorporated
Yarn Gripper : Special Accu-Gripper Used
Yarn Inlet guide : Tanatlum Oxide Eyelet
Yarn Inlet Bobbin Size :
Available feature : Stop Motion for Yarn Break with
identification No.
