MULTI COLOR SHEET DYEING RANGE

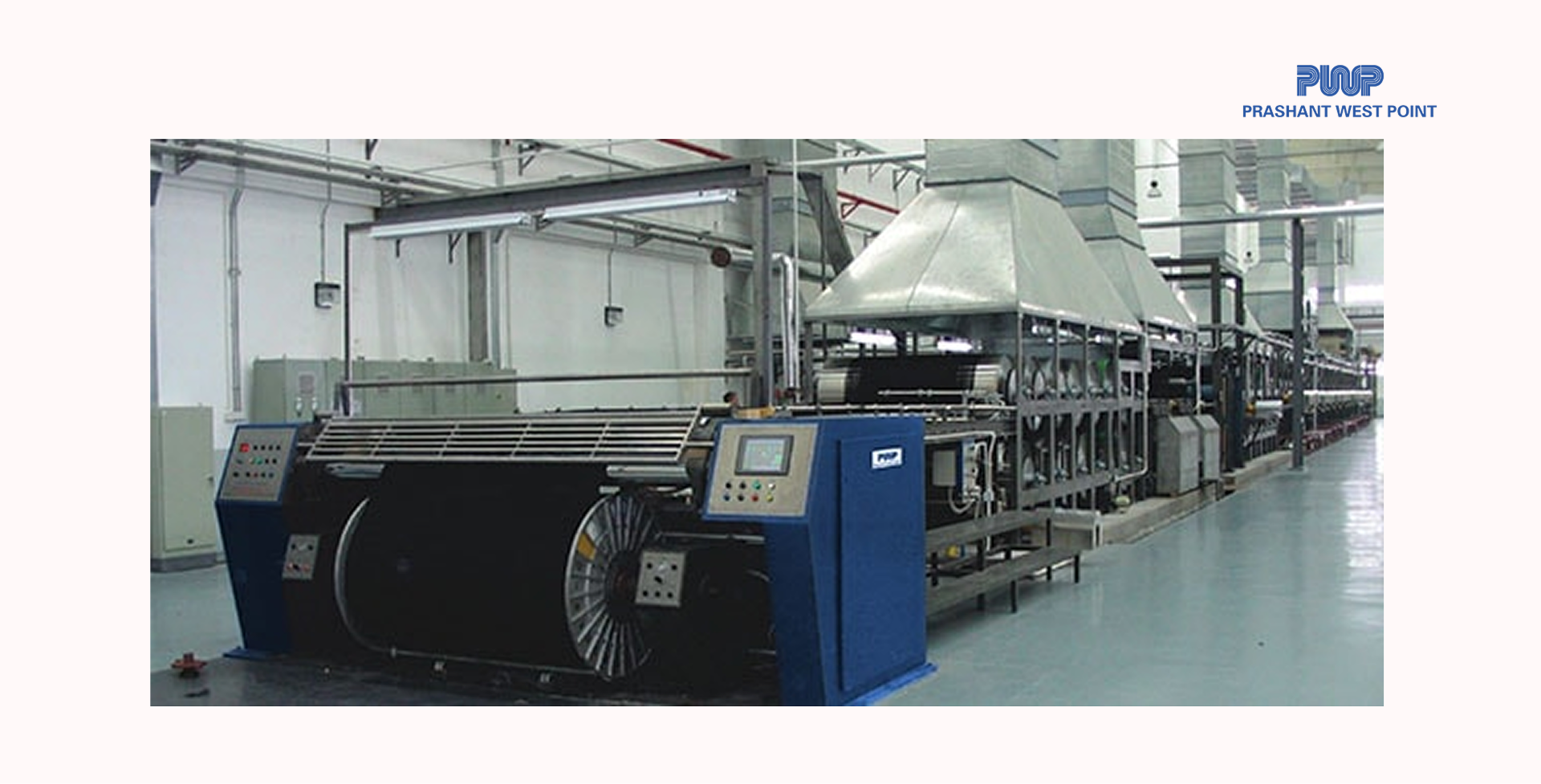

The Prashant Westpoint Conventional Indigo Dyeing Machine is a proven and reliable solution designed for continuous denim production, combining dyeing and sizing in a single streamlined process. Built on robust engineering and established industry practices, it delivers consistent shade quality, efficient operation, and cost-effective performance. Ideal for large-scale manufacturing, it ensures stable production, uniform dye application, and reliable output for modern denim weaving operations.
| Beam creel | : | 4-32 beams |
| Working width of creel | : | 1500 - 2200 mm |
| Warper's beam flange diameter | : | up to 1600 mm |
| Work. width of dyeing | : | 1600 - 2200 mm |
| Work. width of size box | : | 1800 - 2200 mm |
| Working width of beamer | : | 1800 - 4000 mm |
| Weaver's beam flange diameter | : | up to 1250 mm |
| Dryer cylinder diameter | : | 800 mm |
| Winding tension | : | 5000 - 8000 N |
| Yarn tension in the range | : | 250 - 2000 N |
| Max. speed of dyeing range | : | up to 50 mpm |
| Conventional Dyeing | Nitrogen Technology |
|---|---|
| Continuous dyeing and sizing in a single operation | Oxygen-free dyeing environment for controlled process |
| Advanced yarn path design for low tension and reduced breakage | Higher dye utilization and reduced indigo loss |
| Uniform dyeing with optimized liquor circulation system | Up to 24% reduction in chemical consumption |
| Flexible multi-tank configuration for diverse applications | Superior shade consistency across production |
| High-speed production with consistent output quality | Improved dye penetration and fixation |
| Smart automation with precision process control | Lower water and energy consumption |
| Improved loom performance through better yarn conditioning | Reduced wastewater (50%-60%) and environmental impact |
| Stable and repeatable dyeing performance | |
| Lower production cost and higher efficiency |
